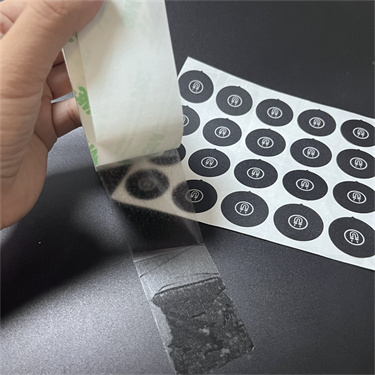

3M 55261 double sided tape

3M 55261

Features :
1.  Transparent PET Material: 3M55261 is made from a transparent PET (Polyethylene Terephthalate) material, which provides dimensional stability and is easy to die-cut.
2.  Double-Sided Acrylic Adhesive: It features a high tack acrylic adhesive on both sides, offering high initial adhesion and good shear holding power to a variety of surfaces.
3.  Thinness: With a thickness of only 0.1mm, 3M55261 is an ultra-thin double-sided transparent PET tape suitable for applications where thickness is a critical factor.
4.  Resistant to Heat and UV: The tape has good resistance to heat and ultraviolet light, making it suitable for applications that require exposure to high temperatures or sunlight.
5.  Easy Handling: The tape is easy to handle and apply, with a firm foam core that provides stability during application.
Applications :
1.  Electronic Device Assembly: It is widely used in the assembly of electronic devices, such as bonding small pads in electronic equipment, LCD foam bonding, and attachment of microphone meshes and filters.
2.  Backlight Component Adhesion: 3M55261 is suitable for bonding components in backlight products, including frames, reflective sheets, light-shielding sheets, and light-guide plates.
3.  Attachment of Accessories: It can be used for the attachment of mobile phone accessories, LCD gaskets, and other components that require a strong bond.
Performance :
1.  Adhesion: The tape exhibits strong adhesion to various substrates, including polycarbonate and stainless steel, with high peel adhesion values.
2.  Shear Strength: It has a static shear strength of 10,000 minutes, indicating its ability to hold under pressure for an extended period.
3.  Temperature Resistance: 3M55261 has a short-term temperature resistance of 200°C (390°F) and a long-term temperature resistance of 80°C (176°F), making it suitable for high-temperature applications.
4.  Durability: The tape is designed for long-term durability, with a shelf life of 24 months when stored in original cartons at 70°F (21°C) with relative humidity.
These characteristics make 3M55261 a versatile and reliable choice for a variety of bonding applications in industries such as electronics, automotive, and medical devices.
